Oil Max Filters

Developed and manufactured by Sparkler Filters Inc, the Oil-Max System provides optimally efficient, reliable, and user-friendly cooking oil filtration that will please your customers and your budget.

DESCRIPTION

  • The Motor -1/3 H.P. 60 cycle 110-V 5 amp 1 phase temperature 400°F heavy duty.
  • The Pump- High vacuum gear pump suction coupled directly to motor for simplicity and long life -- no coupling problems, no leakage and simple to maintain.
  • The Pot- Constructed of non-corrosive stainless steel, the pot is designed for ease of use, safe operation, durability, and fryer accommodation.
  • The Frame-The motor, pump and pot are assembled on the frame without bolts or screws. Sanitary casters make it easy to move the filter around for use and storage.
  • The Hose- Braided stainless steel designed for high temperature durability. Flexible and smooth internal and external surfaces.  Equipped with insulated handle that can be held with bare hands regardless of oil temperature.
  • Snap-Tite Couplings- Quick connect snap-tite couplings come with a safety lock feature that ensures hose will not come loose during operation.
  • Filter Plate- The stainless steel filter plate is designed to last as long as the filter, and to support the filter medium exposed to any pressure and temperature.
  • Filter Paper- The filter envelope has been selected for optimum porosity, ease of installation, and REPLACEMENT AFTER EVERY USE in the interest of sanitary operation.
  • Sparklaid®- Our Sparklaid® filter aid has been carefully formulated for its ability to chemically adsorb free fatty acids, adsorb discoloration, and form a dynamic media to capture all particulate matter larger than 1/2 micron.
  • Original price $5,000.00
    Original price $5,000.00 - Original price $5,000.00
    Original price $5,000.00
    Current price $4,800.00
    $4,800.00 - $4,800.00
    Current price $4,800.00

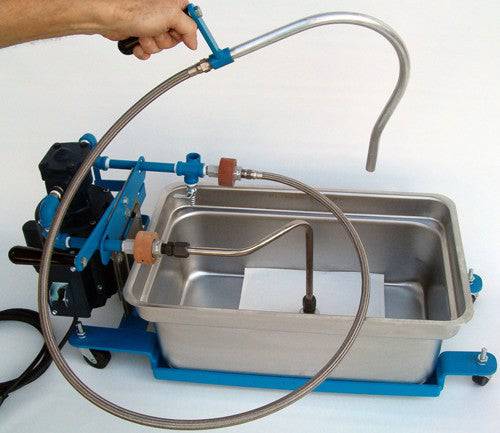

    Oil-MAX SOF 50 Shortening Filter/ Filteration System

    Equipmentplus

    Capacity: 50lbs shortening / approximately 6.5 gallons liquidShipping Dimensions: 36-1/8 x 16-1/8 x 18”Uses: Small, Single FryersBonus Items: Free ...

    View full details
    Original price $5,000.00
    Original price $5,000.00 - Original price $5,000.00
    Original price $5,000.00
    Current price $4,800.00
    $4,800.00 - $4,800.00
    Current price $4,800.00
    Save 4% Save %
  • Original price $4,266.50
    Original price $4,266.50 - Original price $4,266.50
    Original price $4,266.50
    Current price $3,710.00
    $3,710.00 - $3,710.00
    Current price $3,710.00

    Oil-Max SOF 90 Shortening Filter/ Filteration System

    Equipmentplus

    Capacity: 90lbs shortening / approximately 11.5 gallons liquidShipping Dimensions: 33-3/4 x 22-1/2 x 22-3/4”Uses: Medium Single Fryer or (2) Small ...

    View full details
    Original price $4,266.50
    Original price $4,266.50 - Original price $4,266.50
    Original price $4,266.50
    Current price $3,710.00
    $3,710.00 - $3,710.00
    Current price $3,710.00
    Save 13% Save %
  • Original price $5,575.60
    Original price $5,575.60 - Original price $5,575.60
    Original price $5,575.60
    Current price $4,423.53
    $4,423.53 - $4,423.53
    Current price $4,423.53

    Oil-Max SOF 150 Shortening Filter/ Filtration System

    Equipmentplus

    Capacity: 150lbs shortening / approximately 19.5 gallons liquidShipping Dimensions: 36-3/4 x 28-1/2 x 16-3/4” Filter Dimensions: 37 3/16" L x 25" W...

    View full details
    Original price $5,575.60
    Original price $5,575.60 - Original price $5,575.60
    Original price $5,575.60
    Current price $4,423.53
    $4,423.53 - $4,423.53
    Current price $4,423.53
    Save 21% Save %
  • Original price $5,507.35
    Original price $5,507.35 - Original price $5,507.35
    Original price $5,507.35
    Current price $4,789.00
    $4,789.00 - $4,789.00
    Current price $4,789.00

    Oil-Max SOF 250 Shortening Filter/ Filtration System

    Equipmentplus

    Model: SOF 250 List Price:$3412.48 Capacity: 250lbs shortening / approximately 32.5 gallons of liquid Shipping Dimensions: 36-3/4 x 28-1/2 x 16-3/4...

    View full details
    Original price $5,507.35
    Original price $5,507.35 - Original price $5,507.35
    Original price $5,507.35
    Current price $4,789.00
    $4,789.00 - $4,789.00
    Current price $4,789.00
    Save 13% Save %
  • Original price $229.38
    Original price $229.38 - Original price $229.38
    Original price $229.38
    Current price $216.19
    $216.19 - $216.19
    Current price $216.19

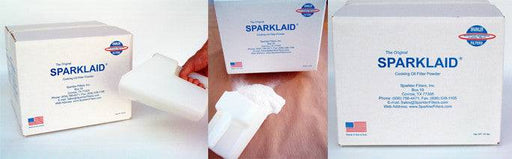

    Oil-Max Sparklaid Filter / Filtration Powder-40LBS

    Sparkler

    100% Organic Formula Sparklaid® is a filter aid, added prior to filtration, to absorb impurities for optimum filtration. Sparklaid is completely or...

    View full details
    Original price $229.38
    Original price $229.38 - Original price $229.38
    Original price $229.38
    Current price $216.19
    $216.19 - $216.19
    Current price $216.19
    Save 6% Save %
  • Original price $287.50 - Original price $442.75
    Original price $287.50 - Original price $442.75
    Original price $287.50
    $261.03 - $412.61
    $261.03 - $412.61
    Current price $261.03

    Sparkler Filter Machine Filtration Envelopes for Model SOF/50 SOF 90/ SOF 150/SOF 250

    Sparkler

    Sparkler Envelopes are required for the mechanical stage of the Oil-Max Oil Filtration System. Envelopes should be changed out after every use. Rep...

    View full details
    Original price $287.50 - Original price $442.75
    Original price $287.50 - Original price $442.75
    Original price $287.50
    $261.03 - $412.61
    $261.03 - $412.61
    Current price $261.03
    Save up to 9% Save %
  • Original price $185.00 - Original price $185.00
    Original price
    $185.00
    $185.00 - $185.00
    Current price $185.00

    Sparkler 150 Filter mesh screen

    Sparkler

    Mesh filter screen that fits inside of the filter envelope for the sparkler 150
