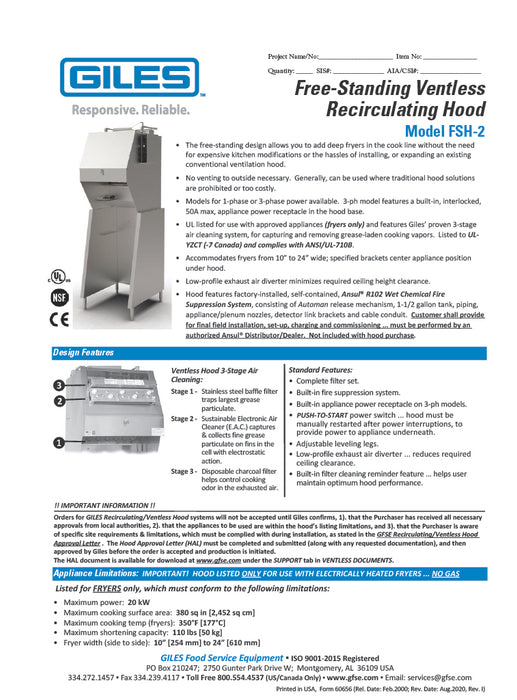

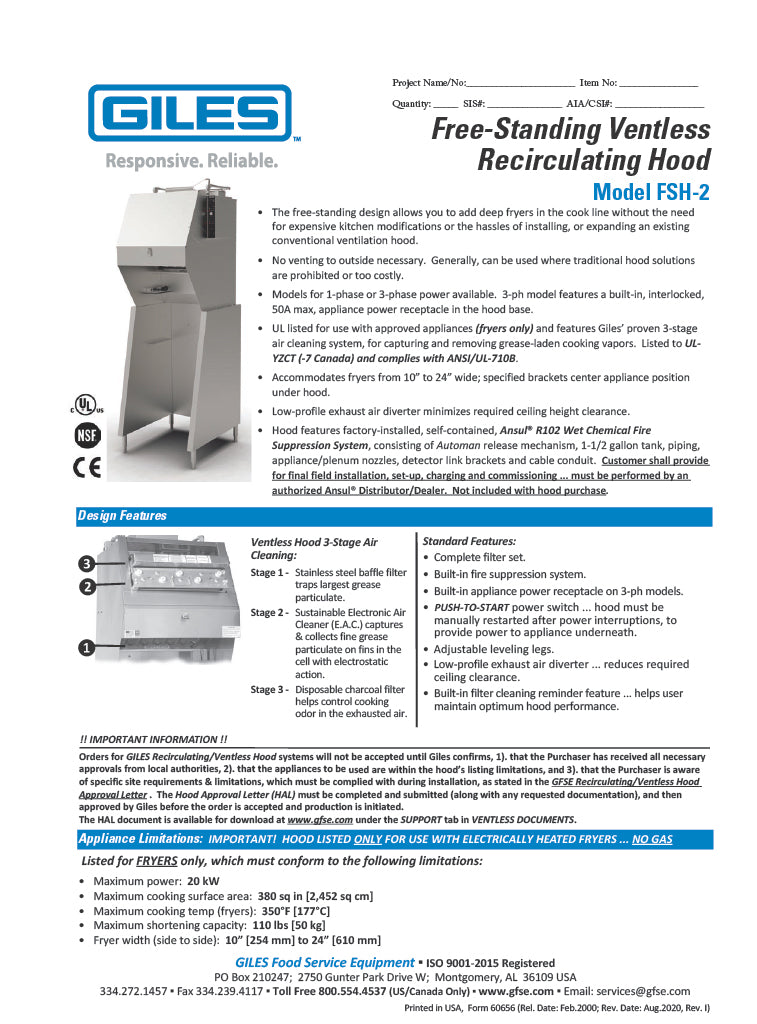

Giles FSH-2A-99 Freestanding Ventless Recirculating Hood System, 3-Stage Filtration, 208-240V/60Hz/1PH
Giles FSH-2A-99 Freestanding Ventless Recirculating Hood System, 3-Stage Filtration, Built-In Fire Suppression, 208-240V/60Hz/1PH
The Giles FSH-2A-99 Freestanding Ventless Recirculating Hood System is a high-performance Type-1 ventilation solution engineered for commercial kitchens that require flexible fryer installation without the expense and limitations of traditional ducted ventilation systems. Featuring advanced 3-stage air filtration, built-in fire suppression, and a freestanding design, the FSH-2A-99 allows operators to add electric fryers in locations where conventional exhaust hoods may be impractical, prohibited, or too costly to install.
Designed with increased clearance beneath the hood, the FSH-2A-99 is ideal for pressure fryers and fryers equipped with automatic basket lifts. Its compact footprint accommodates appliances ranging from 10" to 24" wide while fitting comfortably beneath standard 8-foot ceilings, making it an excellent solution for convenience stores, grocery operations, concession kitchens, institutional foodservice, and compact commercial cooking environments.
Advanced 3-Stage Air Filtration System
The FSH-2A-99 utilizes a sophisticated 3-stage filtration process to effectively capture grease, smoke, vapor, and airborne cooking particulates. The system includes a stainless steel baffle filter for larger grease particles, an electrostatic air cleaning filter for fine contaminants, and a disposable charcoal filter for odor reduction and final air purification before recirculation back into the kitchen.
Built-In Fire Suppression & Safe Operation
For enhanced safety in demanding fryer applications, this ventless hood system includes a fully integrated fire suppression system. The PUSH-TO-START safety switch requires manual restart following any power interruption before power is restored to the appliance beneath the hood, helping support safe operation and compliance in commercial environments.
Freestanding Design with Flexible Installation
The freestanding configuration eliminates the need for costly ductwork, roof penetrations, or major ventilation modifications. Adjustable leveling legs provide stability on uneven floors, while the built-in exhaust air diverter helps reduce required ceiling clearance for easier installation in low-ceiling applications.
Key Features
- Freestanding Type-1 ventless recirculating hood system
- Designed for electric fryer applications
- Advanced 3-stage filtration system
- Stainless steel baffle grease filter
- Electrostatic air cleaning filter
- Disposable charcoal odor filter
- Built-in fire suppression system
- Increased hood clearance for pressure fryers and basket lift fryers
- Accommodates appliances from 10" to 24" wide
- Fits beneath standard 8-foot ceilings
- Built-in interlock relay powers fryer beneath hood
- PUSH-TO-START manual restart safety switch
- Adjustable leveling legs
- Exhaust air diverter reduces ceiling clearance requirements
- Stainless steel construction
- No external ductwork or outside venting required
- cULus listed
- NSF certified
- CE approved

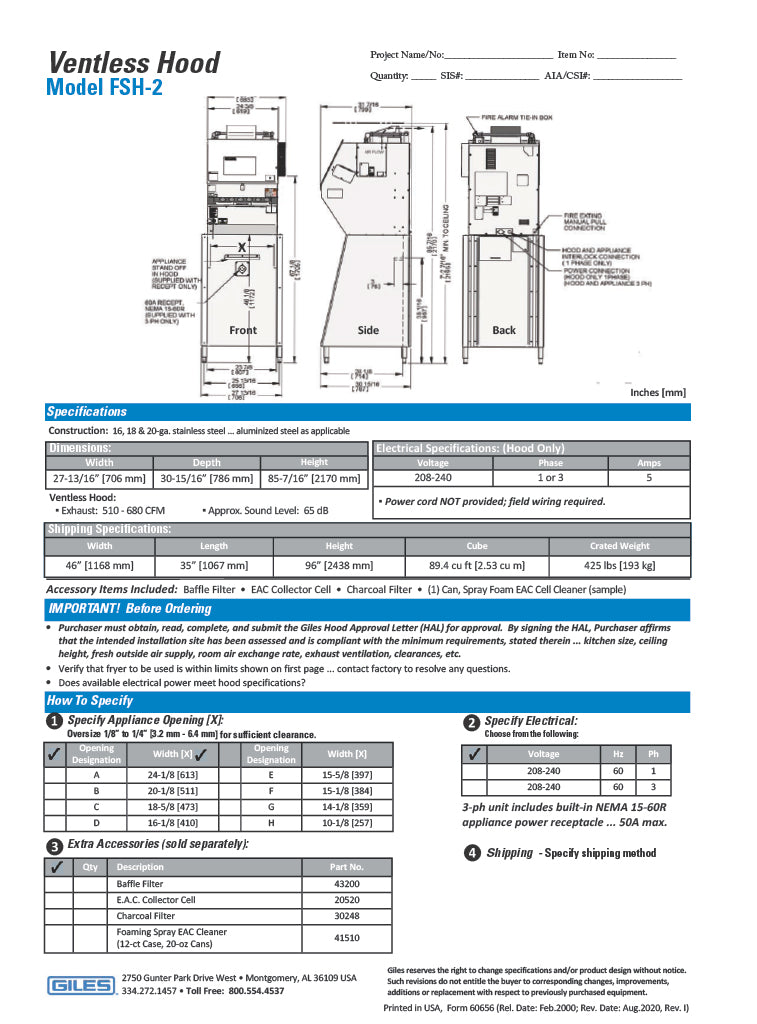

Specifications
- Manufacturer: Giles
- Model: FSH-2A-99
- Type: Ventless Recirculating Hood System
- Hood Type: Type-1
- Installation Style: Freestanding
- Filtration System: 3-Stage Air Cleaning
- Filter Types:
- Stainless Steel Baffle Filter
- Electrostatic Air Cleaning Filter
- Disposable Charcoal Filter
- Appliance Width Capacity: 10" to 24"
- Construction: Stainless Steel
- Fire Suppression: Built-In System
- Electrical: 208-240V
- Frequency: 60Hz
- Phase: 1PH
- Width: 30-7/16"
- Depth: 40-3/16"
- Height: 95-47/64"
- Crated Weight: 595 lbs
- Certifications: cULus, NSF, CE

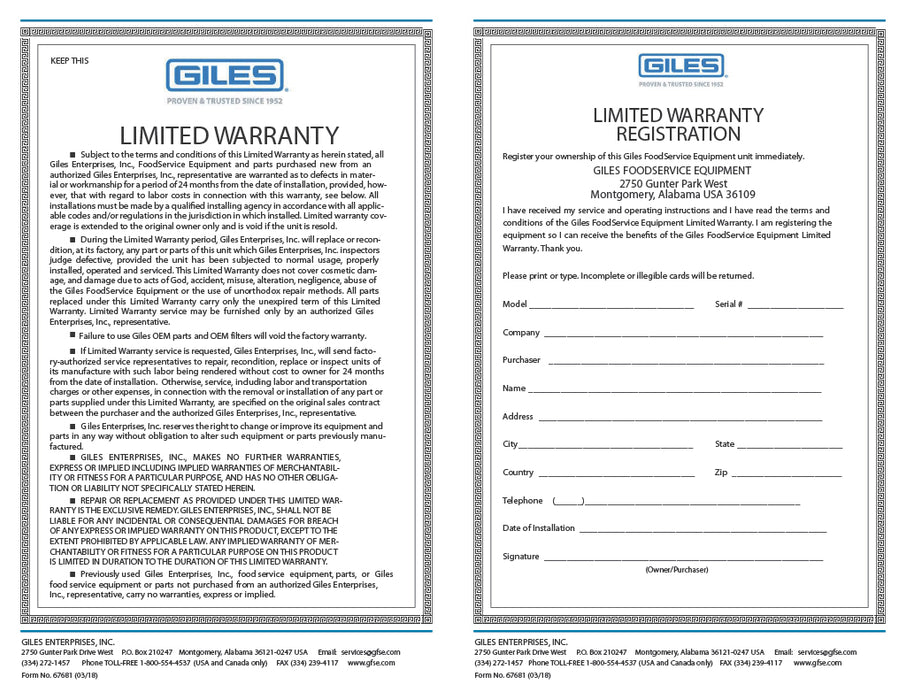

Warranty
Manufacturer Warranty Included
This Item Ships via Common Carrier.
Upgrade your commercial kitchen with the Giles FSH-2A-99 Ventless Recirculating Hood System for efficient fryer ventilation, advanced filtration, and built-in fire protection without the cost of traditional ducted exhaust systems. Designed for flexible installation and dependable commercial performance, this freestanding unit is ideal for operations requiring powerful ventless cooking solutions in compact spaces. For time-sensitive orders, please contact us before purchasing. Once your order is processed, cancellation or return may not be guaranteed.
