Avalon ADF24-E-3 Donut Fryer 24" X 24" Electric (3 phase) Left Side Drain Board
Avalon ADF24-E Donut Fryer 24" X 24" Electric (3 phase) Left Side Drain Board
Avalon Donut Fryer (ADF24-E) is a heavy-duty fryer with a compact design allowing for maximum production with minimal space taken up. This design is an all Stainless Steel construction with a high backsplash and heavy-duty mounting bracket ready for your donut dropper to be added on. This compact design is ready to fit into any kitchen or mobile concession. This model comes standard with options that are a usual add-on or extra costs such as a cake screen with handles, cradle lifter, and crumb screen. This model uses 1 phase electrical.
- Stainless Steel Kettle Pot
- Cake Screen with Handles
- Cradle Lifter
- Crumb Screen
- Stainless Steel Cabinet
- Stainless Steel Backsplash
- Adjustable Drain Tray/Cover
- Leveling Bolt Down Legs
- Exterior Drain Valve Control
- Depositor Mounting Bracket
- Easy to use Protected Controls
- Safety High-Limit Control
- Cake Screen & Cradle
- Frying Area 24 inches side-to-side x 24 inches front-to-back
- 208 Volts / 60Hz / 3-phase 42 Amps
- Drain tray on Left side of the fryer
- Dimensions: 30"W x 32"D x 34"H (Tray Open 55"W / Top of Backsplash 60"H)
- Electrical: 208V/240 Volts, 50/60HZ, 1 or 3-Phase (SPECIFY WHEN ORDERING)
- Frying Area/Oil Capacity: 24"x 24" / 100 LBS.
- Production Output: 80-100 Dozen Per Hour at 90 Seconds Fry Time
- Apx Shipping Weight: 350 LBS.
- A ventilation and fire suppression hood is usually required for indoor locations.
- 350 pounds shipping weight
- If a cake dropper is desired to be mounted, please check out the Belshaw type B or F to be used with the provided mount attached to the back of the fryer.
- Accessories suggested; Type B or F cake dropper and the appropriate size Shortening Filter machine for the model made by Avalon that stores under the fryer.
* This item is not stocked in our warehouse stock and transit time may vary, if you need your items by a certain date please contact us prior to placing your order we cannot guarantee that this

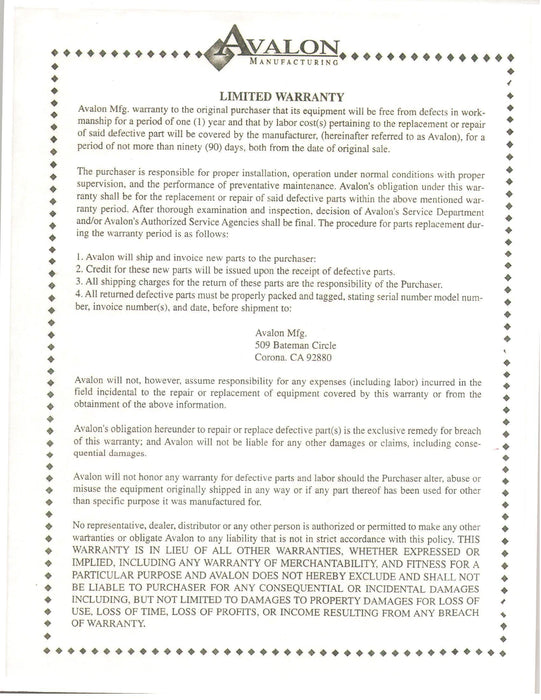

* 1-year parts and labor cost limited warranty (see attached media)
*Photo with left side drain board is unavailable
