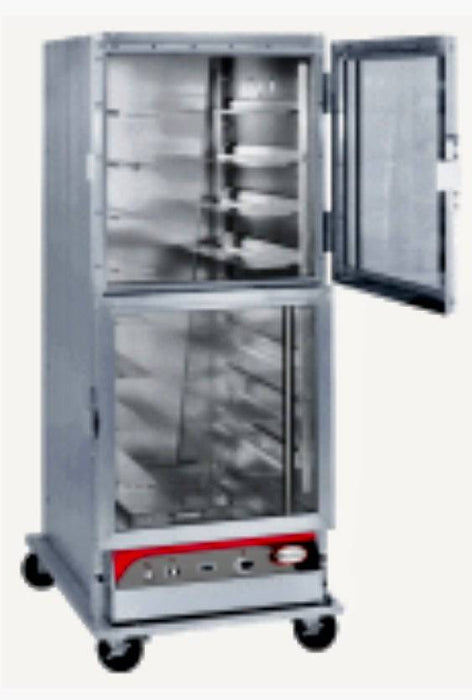

Bevles Proof-box Model: PICA70-32-A- 4L2 Left Hinged (208-230V 1 phase) 2 Door Proofing Cabinet- (Non Insulated)

by Bevles
Save 11% Save 11%
Original price $4,225.07
Original price $4,225.07 - Original price $4,225.07
Original price $4,225.07
Current price $3,769.25
$3,769.25 - $3,769.25
Current price $3,769.25

Aluminum construction with universal extruded pan supports accommodate a variety of pans and screens. Full-length Lexan® door with heavy duty hinges, positive closing latch and perimeter gasket. Bottom mounted electrical unit with separate controls for heat and humidity. “Cast-in” humidity system prevents element burnout and potential injury from accidental contact with exposed heating element. Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of cabinet.

Mobile, full height with insulated top, back & sides.

* (2) Two Left Hinged Doors (Right Hinged Photo,Photo Left Hinged Unavailable)

208-230v/50/60/1-ph. 1400 watts. 7.5/6.8 amps. Cord only. CULus. NSF.

Construction:

• Body: .063 aluminum

• Door: Clear Lexan® with an extruded aluminum frame

• Door Latch and Hinges: Patented positive action door latch with heavy-duty stainless steel hinges

• Door Gasket: Closed cell foam

• Base: .125 aluminum

• Rear (Air Duct) Panel: .063 aluminum Pan Support Assembly:

• Pan Supports: Extruded universal pan supports adjustable on 3" centers

• Uprights: .100 aluminum slotted on 3" centers Electrical:

• Switch: 15 Amp, lighted

• Bottom mounted heating unit with a one (1) piece modular drop-in design blower assembly

• Entire bottom mounted heating unit is easily removable for cleaning and maintenance

• Air heating element rated at 1000W, 120V

• Humidity heating element rated at 400W, 120V • 5 quart (4.7 liter) cast water reservoir

• Lexan® water reservoir cover • Easy to operate controls feature precision thermostat, variable humidity control and dial thermometer

• All controls are visible and operable from exterior of cabinet Casters:

• Heavy-duty plate type casters, with 5" hard neoprene wheels; all swivel; wheel brakes on front two casters

Shipping:

• Freight Class: 85
