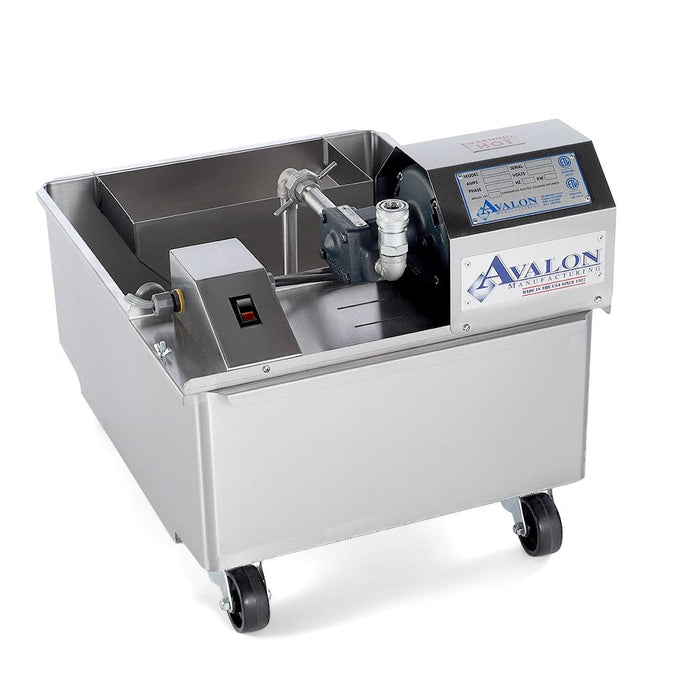

Avalon ARF 24 G (Gas Fryer) Oil/Shortening Filter
ARF 24 G
The Avalon Shortening Filter is of Stainless Steel construction equipped with a Sediment Catch Basket, Quick Disconnect Filter Hose with Coil Handle, Thermo-guard Motor with On/Off switch and Stainless Steel Motor/Pump cover. All parts are easily removed without tools for easy cleaning.
Description: FOR USE WITH 24" x 24" Avalon Gas FRYERS
Electrical: 115 V/ 50-60 HZ/1 Phase 6.5 Amps
Stainless Steel Tank
High Temp Filter Hose with Coil Handle and Quick Disconnect
Sediment Catch Basket
Stainless Steel Filter Screen
Easy to use controls
Stainless Steel fittings easy to remove for cleaning
Approximate shipping weight 110 pounds
Shortening life and quality of your oil are extended with the Avalon Manufacturing ARF24-G oil / shortening filter. The unit is easy-to-use and easy-to-store. The filter removes crumbs and sediment from your oil that will cause flavor transfer and a quick breakdown of the shortening.
The filter area has an oil capacity of 100 lbs with a lower profile design that fits underneath the Avalon 24" x 24" fryers effortlessly. Placing this portable filter machine under your fryer drain, allows the used oil to flow through the included sediment catching basket. As the oil flows through the sediment basket, large debris or food scraps are caught. As the oil drains, it will collect on top of the stainless steel filter screen in the filter pan. From there, turn on the pump, and the oil will go through the high temperature food grade oil hose and run through your fryer a few times. Finally, close your fryer drain and refill the fryer with clean oil.
This unit's stainless steel construction provides long-lasting use and the stainless steel fittings are easy to remove for cleaning. Plus, the controls are easy-to-use, and simply require the flip of a switch. Other features include a thermo-guard motor and four swivel casters.
- Dimensions ARF24 G: 20"W X 33"L X 12"H (Motor Height 19")
ARF24-G From Avalon Manufacturing
